BN Thermic Heating Products
BN Thermic Underfloor Heating Systems
Stay cosy throughout all four seasons with luxuriously toasty underfloor heating systems. BN Thermic’s range is built for super-simple installation, so that icy cold floors will soon become a thing of the past.

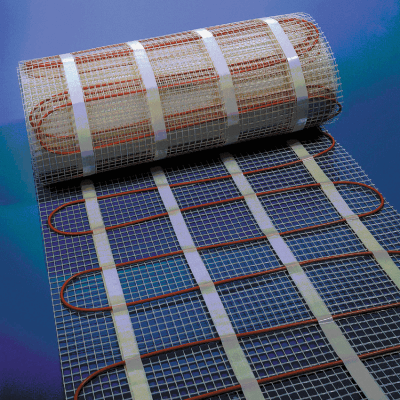

M Series Underfloor Heating Mats
Bn Thermic's underfloor M series heating mats are ideal for any room, including conservatories, bathrooms and wet rooms, suitable for a wide range of floor surfaces. These high quality heating mats offer an extended lifetime warranty.
- Voltage supply: 230V
- Outputs: from 0.07kW to 2kW dependant on model
- Webbing: fibreglass (500mm wide)
- Fixing: continuous double sided tape
- Cable approvals: EN60335-2-96 as required by the 17th Edition Wiring Regulations (BS7671.2008)
- Cable diameter: 3mm to 4mm
- Earth screen: continuous AL/PET foil
- Compressive strength (10% compression): 300kpa
- Thermal conductivity to BSEN13164 (5 years): 0.033W/Mk
- Water absorption by volume: 0.6%
- Density (rigid foam core): 36kg/m³
- Temperature range: -50°C to +75°C
- U value (6mm thick board): 6.6W/m²k
- U value (10mm thick board): 3.66W/m²k
- Outer surface (top and bottom):Reinforced mesh with cementitious hard coat

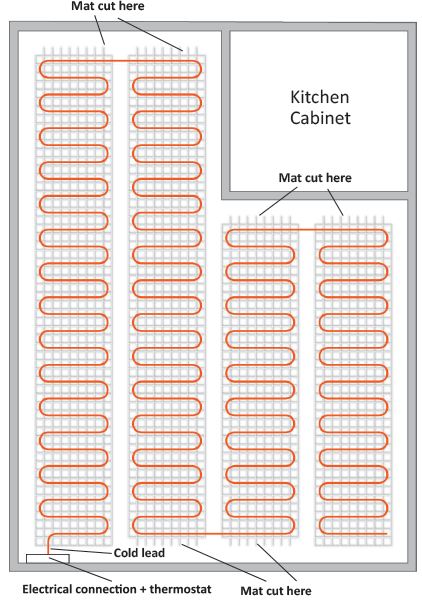

A typical installation of the M Series underfloor heating mats.
The aim is to cover as high a % of the free floor space as possible. BN Thermic suggest selectinga mat with a total area of axpproximately 10% less than the total free floor area. This will allow for quick and hassle free installation. BN Thermic state that in bigger rooms, it is beneficial to install more than one mat.
Shop M Series Heating Mats now!

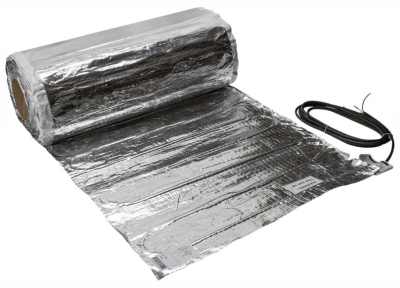

BN Thermic F-Series Foil Heating Mats
BN Thermic's F Series foil heating mats have been specifically designed for installation under engineered wood and laminate floors. With high quality in mind, BN Thermic can offer a 10 year warranty period on these mats.
- Voltage supply: 230V
- Outputs: from 0.14kW to 1.4kW depending on model
- Mat width: 500mm
- Power lead: 3m long two core and earth
- Heating cable: CuNi, CuZn alloy with ETFE double insulation
- Cable approvals: EN60335-2-96 as required by the 17th Edition Wiring Regulations (BS7671.2008)
- Product thickness: 2mm nominal
- Earth connection: to foil covering
- Material: Extruded polystyrene foam
- Sheet size: 856 x 600
- Thickness: 6mm
- Compressive stress (@10% foam deformation): 10 t/m²
- Thermal conductivity: 0.024W/mk
- Water absorption by volume: less than 1%
- Density: 32kg/m³
Shop F Series heating mats now!

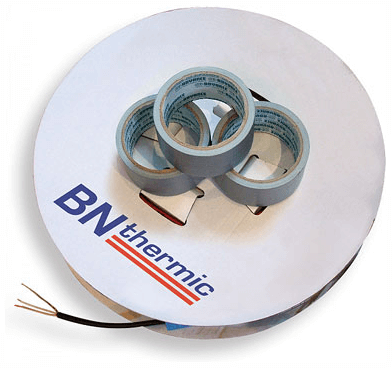

BN Thermic EHC Heating Cables
The BN Thermic ECH range is an economic means to heating a room and providing a luxurious warm floor. The ECH heating cable kits are manufactured to the highest standard and are backed with a 10 year warranty.
The ECH cable is suitable for any room including bathrooms, wet rooms and conservatories. These versatile under floor heating cables can be used with a variety of floor surfaces including porcelain tiles, ceramic tiles, stone, slate, marble, vinyl, carpet, laminate flooring and engineered wood. Ideally suited to small irregularly shaped rooms.
In order to use the ECH cable kits thermostatic control must be used. There are a range of BN Thermic controllers available, all of which are supplied with a floor probe. The thermostats can be configured for primary control via the built in air sensor or via the floor sensor. When using multiple heating mats it is important to check that the combined load of the mats are within the switching capacity of the selected thermostat. When the combined load is greater than the switching capacity of the selected thermostat an appropriately rated contactor must be selected.
To further enhance the efficiency and economy of the under floor heating system it is advisable to limit the amount of downward heat loss. This is achieved by using F-Board insulated tile backer boards. With these boards installed directly onto the sub-floor and below the heating mat, they provide exceptional thermal insulation with minimal increase in floor height. F-Board insulation backer.
- Voltage supply: 230V
- Outputs: from 0.12kW to 2kW depending on model
- Fixing: high adhesion tape provided with each cable
- Power lead: 3m long two core and earth
- Cable approvals: EN60335-2-96 as required by the 17th Edition Wiring Regulations (BS7671.2008)
- Cable diameter: 3mm to 4mm
- Earth screen: continuous AL/PET foil
Shop EHC heating cables now!
BN Thermic Patio and Outdoor Heaters
HWP patio heaters are a stylish means of providing comfort heat in indoor and outdoor locations. Want to stay warm in the evening in the summer months? These patio heaters are perfect for just that. Additionally, they are a superb option for any commercial areas too, including pub gardens, pavement cafes and churches.
- Finish: Epoxy polyester powder coating
- Lamp:
- Frosted halogen lamp (1.5kW heaters)
- Gold filtered halogen lamp (heaters 2kW and above)
- All models also available in Magic Lamp format
- All lamps replaceable
- 7000 hours average life
- Instantly effective
- 95% of output is useful infrared energy
- Construction:
- Aluminium case
- Electro anodised aluminium press-formed parabolic reflector
- Stainless steel safety guard
- Mounting:
- Steel wall bracket providing ‘up and down’ angle adjustment
- Lugs for suspension
- Ingress protection: IP55
- Electrical connections: 3m high temperature cable fitted to all heaters
- Guarantee: 1 year

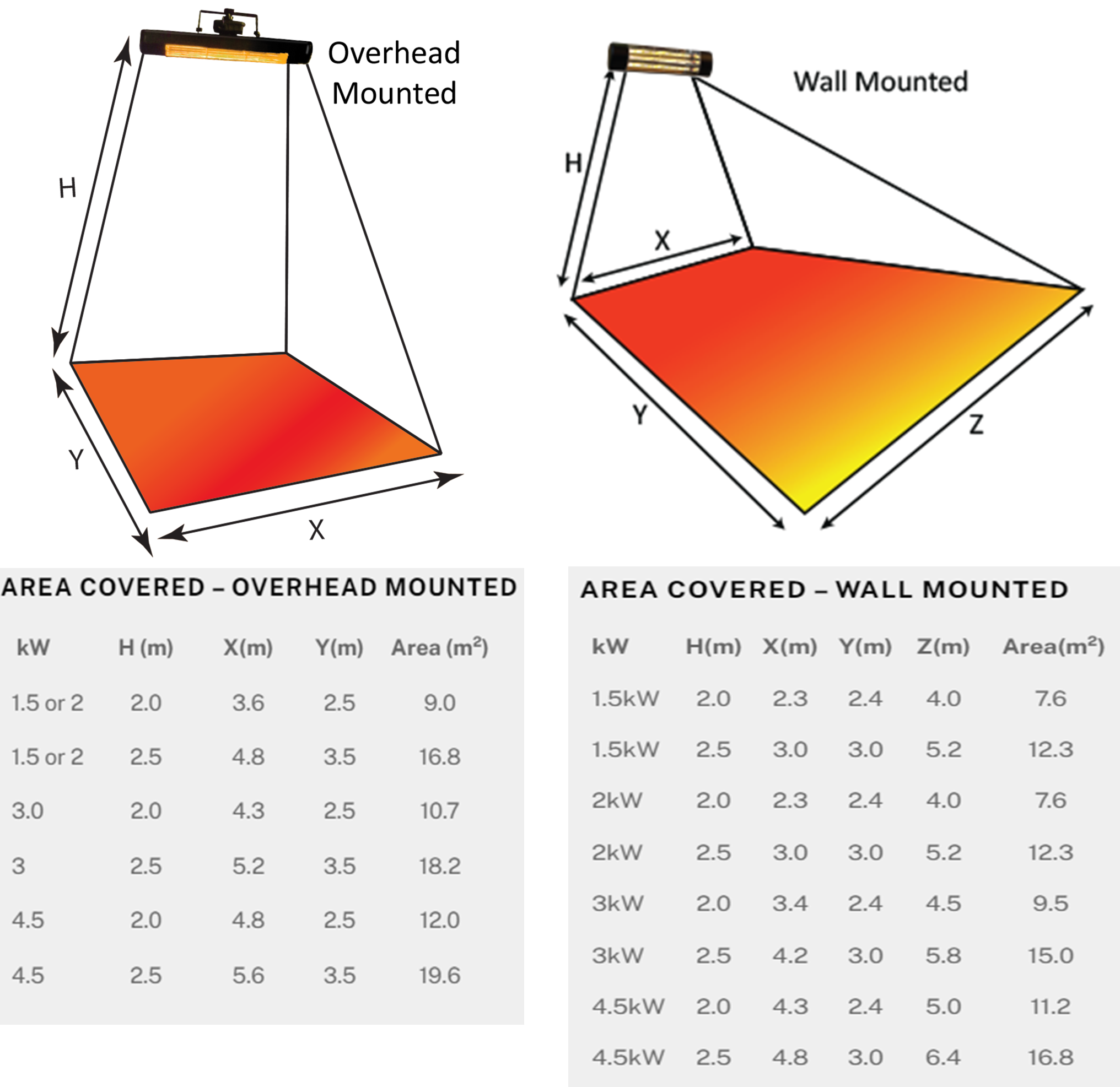

These handy little graphics from BN Thermic will help you choose the perfect heater to best suit your needs
Shop HWP BN Thermic Patio Heaters Now!
-
BN Thermic 4.5kW Patio Heater (HWP2-45B)£433.80 £361.50
