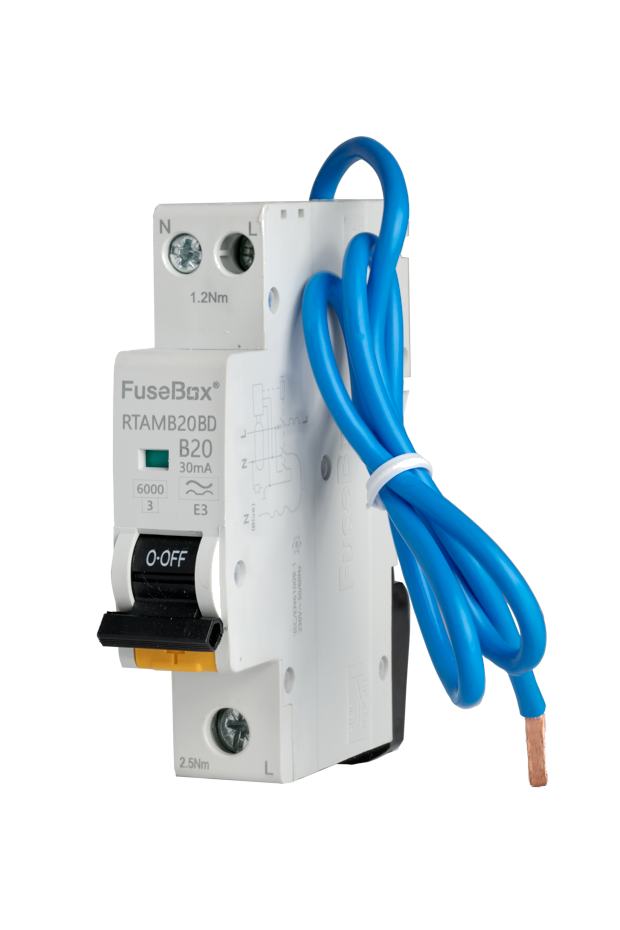

FuseBox 20A Mini RCBO B Curve 6kA 30mA Type A Double Pole - RTAMB20BD
The FuseBox RTAMB20BD is a 20A double-pole Mini RCBO, designed for superior protection against overload, short circuit, and earth leakage. Featuring a 6kA breaking capacity and B curve tripping characteristics (3-5In), this RCBO operates at 230V AC with a 30mA residual operating current (IΔn). It complies with the highest standards of IEC 61009-1 and provides reliable protection for residential and light commercial installations.
This compact RCBO fits easily into FuseBox consumer units, allowing for space-efficient installation. The Type A sensitivity offers protection against both AC and pulsating DC faults. It comes with a flying neutral cable for simple wiring, and supports 1-16mm² terminal capacity, making it an ideal choice for secure circuit protection.
Order today at our great prices, and enjoy our superb customer service!
If you’re not sure about quantities, sizes or have any other questions about your electrical wholesale products, our Electrical2Go sales team will be more than happy to help. Give them a call now on 01424 220384.
KEY FEATURES
- 20A rated current for overload and short circuit protection.
- 6kA breaking capacity ensures effective circuit protection.
- B curve tripping characteristics (3-5In) for fast response.
- Type A RCBO provides sensitivity to AC and pulsating DC.
- 230V AC operating voltage, 50/60Hz frequency.
- 30mA residual operating current (IΔn) for earth leakage protection.
- 2-pole configuration with switched line and neutral.
- Compact design for space-saving installation.
- Flying neutral cable for easy installation.
- IP20 protection degree for indoor use.
- IEC 61009-1 and IEC 61009-2-2 compliant.
- Supports 1-16mm² terminal capacity for efficient wiring.
- Fits standard 35mm DIN rail
- Colour / Finish White
